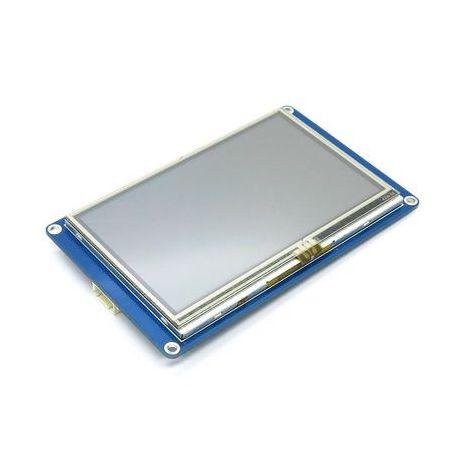

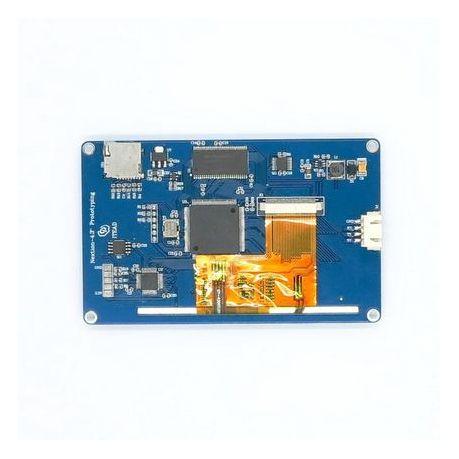

Nextion HMI Touch Screen LCD 4.3"

You are looking at the new Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance.

It is the best solution to replace the traditional LCD and LED Nixie tube.

This solution includes hardware and software part. The board uses only one serial port to do communicating.

Let you get rid of the wiring trouble.

We notice that most engineers spend much time in application development but get unpleasant results.

In this situation, this screen has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design as well as for the drag-and-drop function which ensures that you spend less time in programming, reducing development workloads by 99%.

With the help of this WYSIWYG editor, GUI designing is a piece of cake.

Features:

- 480 x 272 Resolution

- RGB 65K true to life colours

- TFT Screen with integrated 4-wire Resistive Touch Panel

- Easy 4 pin interface to any TTL Serial Host

- 16M Flash memory for User Application Code and Data

- On board micro-SD card for firmware upgrade

- Visual Area:95.04mm x 53.86mm

- Adjustable Brightness: 0-230 nit, the interval of adjustment is 1%

- 5V250mA power conusmption

Documents:

Please visit our wiki page for more info about this product.

It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

What's in the box
1 x 4.3" LCD Screen
1 x Cable
1 x Power supply test board
